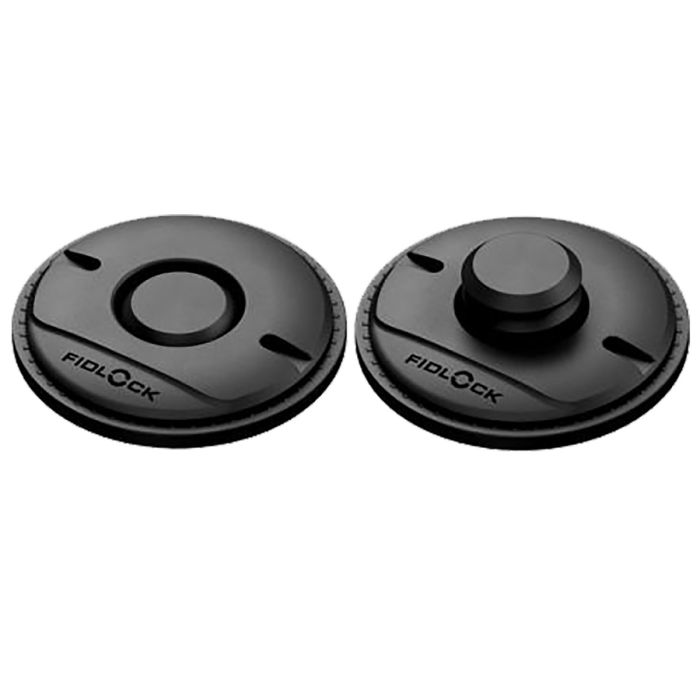

Fidlock SNAP Male M Retractable Screw - 05282
The SNAP male M retractable screw is ideal for textile applications that benefit from a flat surface when the fastener is not in use. An example would be connecting optional pouches or compartments to backpacks and bags.
The SNAP male M retractable screw offers flush integration into your products. When combined with a female counterpart, magnetic force attracts the male part, causing the mushroom-shaped lock to emerge from the SNAP male M retractable and the fastener to lock securely. As soon as the female part is removed, the locking mechanism retracts, regaining the SNAP male M retractable fastener's flat surface. This version features a threaded ring for easy assembly. Naturally, the SNAP male M retractable offers the same quick, easy, and single-handed use as our other SNAP fasteners. The SNAP male M retractable is compatible with all SNAP female M components except for the SNAP female M screw (05500).
The SNAP male M retractable offers easy assembly with a threaded ring. It is simply attached to materials through a punched hole (recommended diameter 24 mm) by screwing the ring on from behind.
Not suitable for safety-related applications.
The load capacity and the suitability of the fastener depend on the size of the components and specific application on the product.
SNAP fasteners always require a combination of a SNAP male part and a female part of the SNAP, SNAP pull or SNAP push product families.
Sector – bags, children, outdoor, professionals, transportation, sports
Opening mechanisms - defined by female part
Weight - ca. 9 g
Dimensions (Ø; height) - 33,0 mm; 11,1 mm (retracted)
Material - PA66GF15, stainless steel (magnetized)
Static breaking load N - 294 N
Static breaking load KG - 30 kg
Colour - black
Assembly - threaded ring (included)
Tools for assembly - front: TOOL 31; back TOOL 3
Dimensions - 36 mm (Ø threaded ring)
Punch hole for assembly - 24,0 mm
