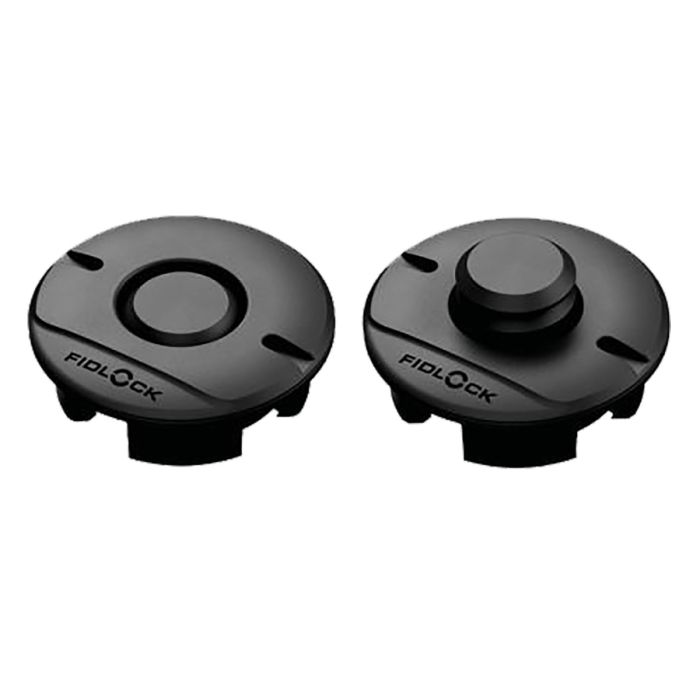

Fidlock SNAP Male M Retractable Anchor - 05281

Our SNAP male M retractable anchor offers flush integration into your products. When combined with a female counterpart, magnetic force attracts the male part, causing the mushroom-shaped lock to emerge from the SNAP male M retractable and the fastener to lock securely. As soon as the female part is removed, the locking mechanism retracts, regaining the SNAP male M retractable fastener's flat surface. This version features an anchor add-on for easy assembly in thick materials, e.g. wood. Naturally, the SNAP male M retractable offers the same quick, easy, and single-handed use as our other SNAP fasteners. The SNAP male M retractable is compatible with all SNAP female M components except for the SNAP female M screw (05500).

The SNAP male M retractable anchor offers features for assembly in thick materials, such as wood. First, press the anchor add-on into a hole in the material (recommended diameter 26 mm). Then screw the fastening component into the anchor. The fastening component and anchor add-on can be unscrewed and removed after assembly if needed.

Not suitable for safety-related applications.

The load capacity and the suitability of the fastener depend on the size of the components and specific application on the product.

SNAP fasteners always require a combination of a SNAP male part and a female part of the SNAP, SNAP pull or SNAP push product families.

Sector – bags, children, outdoor, professionals, transportation, sports

Opening mechanisms - defined by female part

Weight - ca. 8 g

Dimensions (Ø; height) - 33,0 mm; 12,3 mm (retracted & incl. anchor)

Material - PA66GF15, stainless steel (magnetized)

Static breaking load N - 294 N

Static breaking load KG - 30 kg

Colour - black

Assembly - screw thread, threaded ring (included)

Tools for assembly - TOOL 31

Dimensions - 26,0 mm (bolt circle Ø)
