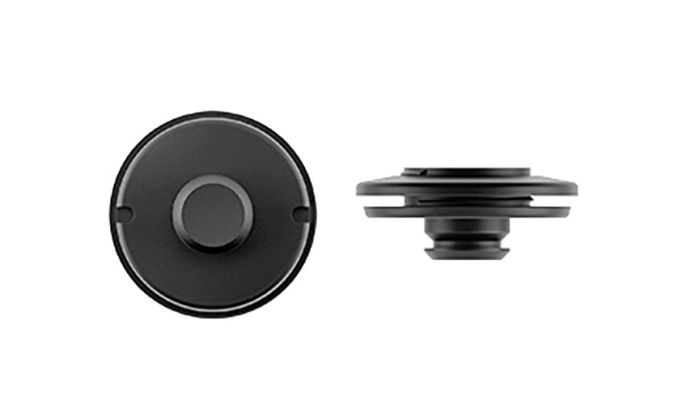

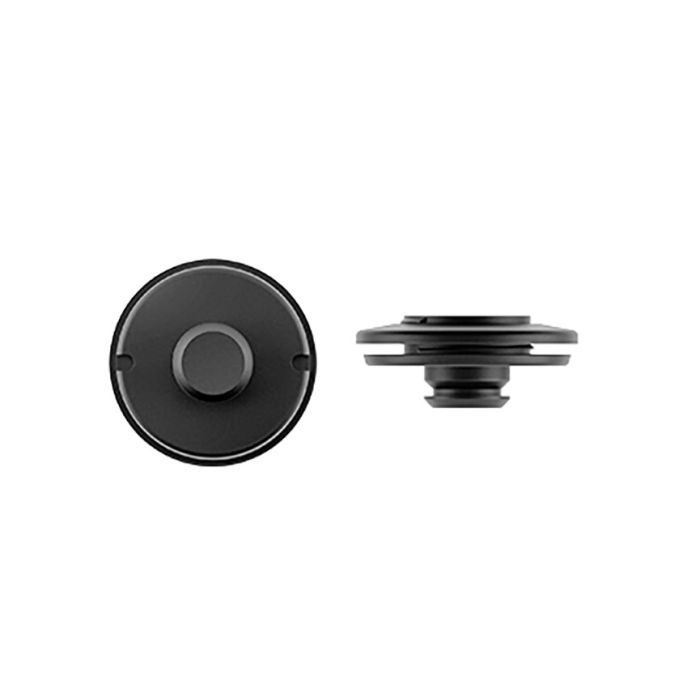

Fidlock Push SNAP Male M Screw Low - 05122

The SNAP male M screw low is designed for material thickness form 0.5 to 2.5mm and is suitable for low/average load capacities. It is fitted to textile materials by means of a screw collar. It is compatible with the SNAP push female M series and the SNAP pull female M 20. Application The versatile SNAP fasteners are suitable for many different applications, for example to close or combine bags or clothes or attach skiing goggles to ski helmets. It is also possible to fasten accessories or larger objects such as an optional outside pocket or a keyring to a rucksack, a footmat in the car or an easily removable bicycle basket.

Specfications

For material thickness 0,5 - 2,5 mm

Diameter 31,0 mm

Hole circle diameter 23,0 mm

Diameter Shaft 13,0 mm

Weight 7,00 g

Load capacity 35,00 kg.

We would recommend to use our tools TOOL3/TOOL9 (Front) and TOOL3/TOOL7/TOOL23 (Back) for proper assembly.
