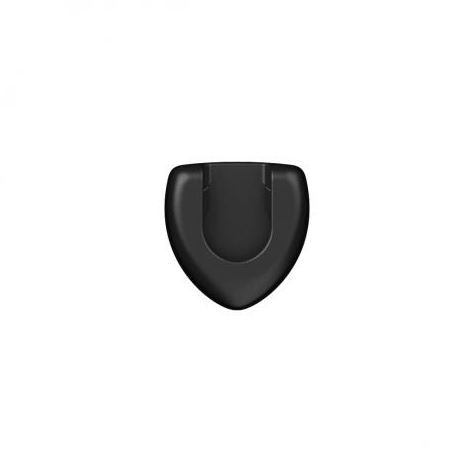

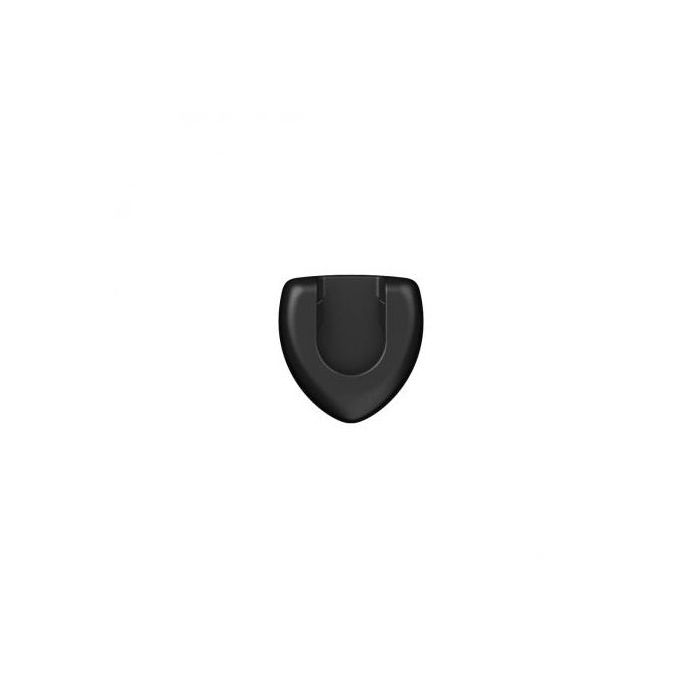

Fidlock Snap Female S Pin Rivet X3 05310

As the SNAP female S pin rivet X2, the rivet X3 can also be attached by invisible rivets with no need of punching a hole first. This Variant differs from the X2 in its slightly other appearance and the additional third rivet. Compatible counterparts are all SNAP male S products.

The smallest size of the SNAP components is primarily suitable for textile applications or low loads, e.g. as a fastener on small bags, on collars or to attach smaller accessories. These fasteners are very compact and inconspicuous and therefore not suitable for luggage-connecting. Please note that the load capacity and the suitability of the SNAP fasteners are dependent on the size of the components and custom application on the product.

Not suitable for safety-related applications.

The load capacity and the suitability of the fastener depends on the size of the components and specific application on the product.

SNAP fasteners always require a combination of a SNAP male part and a female part of the SNAP, SNAP pull or SNAP push product families.

Sector – medical, bags, apparel

Opening mechanisms - slide laterally

Weight - ca. 4 g

Dimensions (L x W x H) - 23,5 x 23,0 x 9,5 mm

Material - PA6

Static breaking load N - 20 N

Static breaking load KG - 2 kg

Colour - black

Assembly – screwing, pressed together
