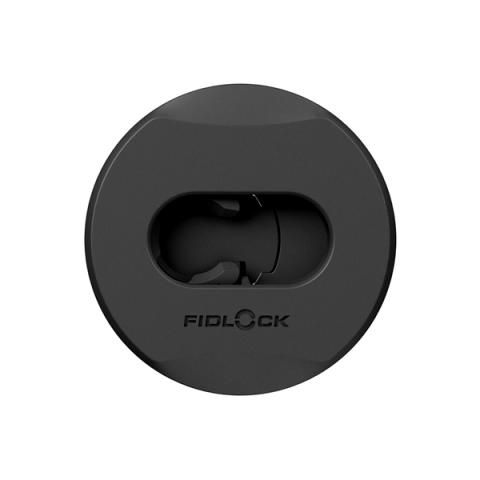

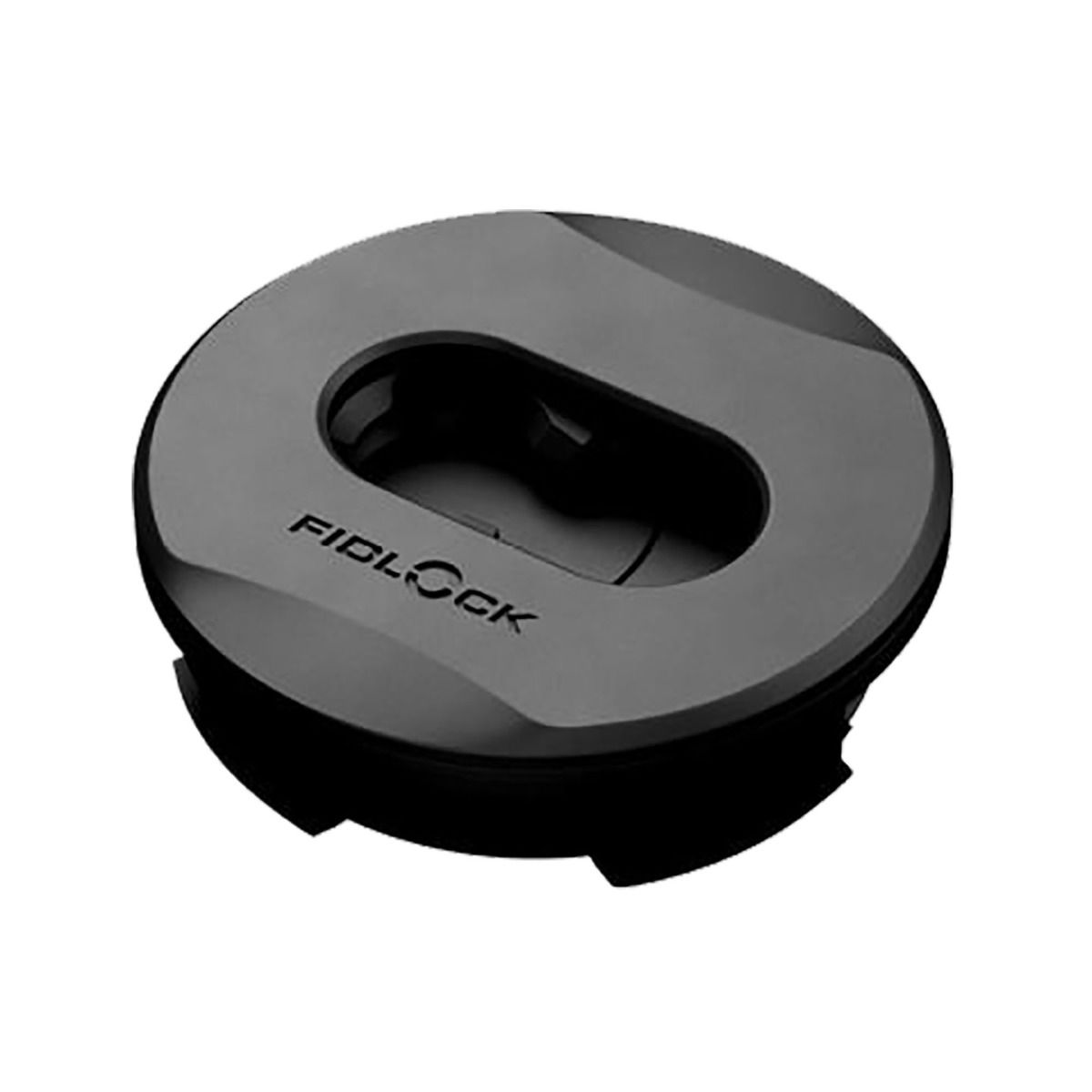

Fidlock SNAP Female M Inset Anchor - 05512

The SNAP female M inset anchor offers flush integration into your products. The locking mechanism is embedded into an indentation in the fastener, allowing a flat surface without any protruding elements on your product. Naturally, the SNAP female M inset anchor offers the same quick, easy, and single-handed use as our other SNAP fasteners. Sliding laterally disengages the male part, allowing it to be lifted out of the locking mechanism. This version features an anchor add-on for easy assembly in thick materials such as wood. The SNAP female M inset anchor is compatible with all M-sized male SNAP counterparts.

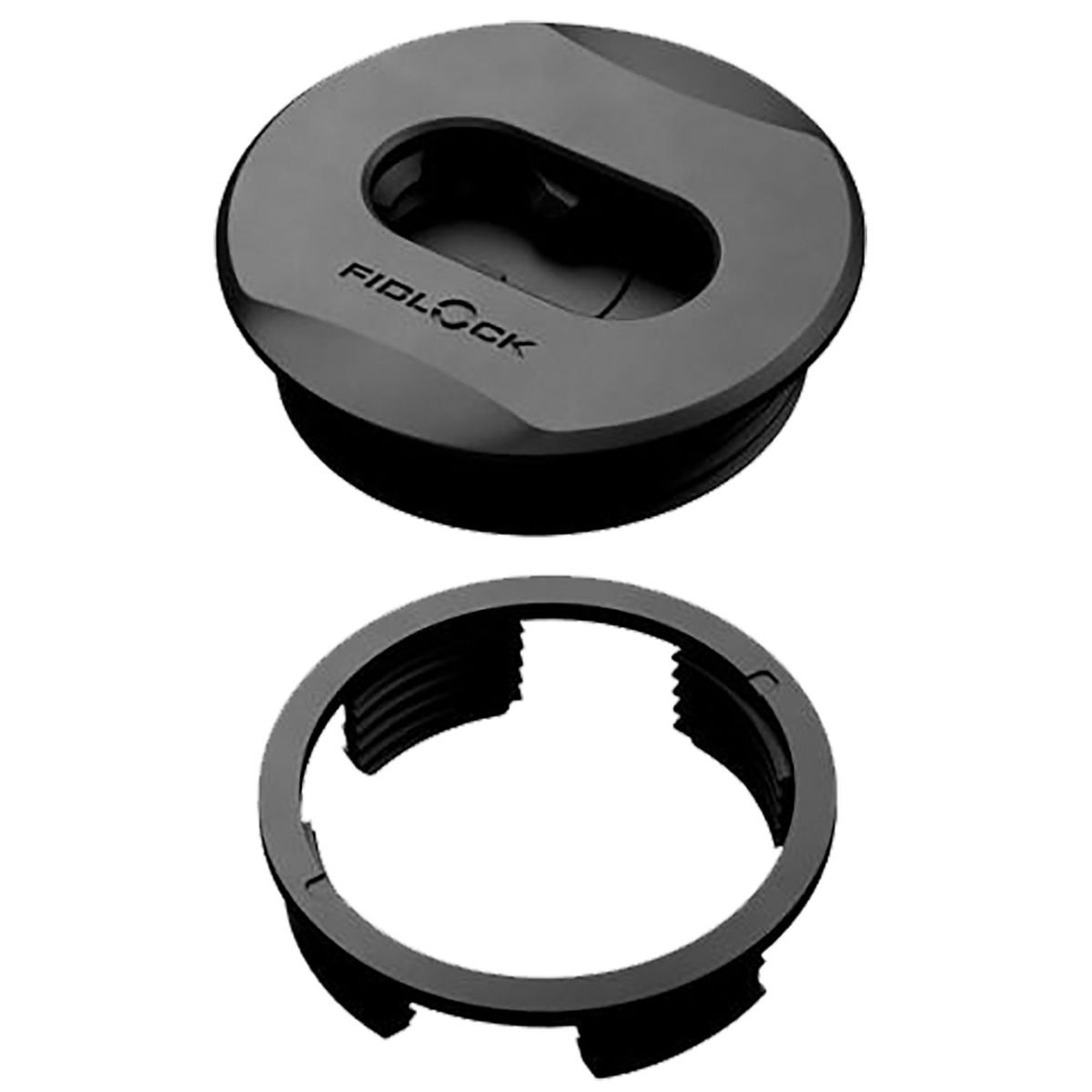

The SNAP female M inset anchor offers features for assembly in thick materials, such as wood. First, press the anchor add-on into a hole in the material (recommended diameter 40 mm). Then screw the fastening component into the anchor. The fastening component and anchor add-on can be unscrewed and removed after assembly if needed.

Not suitable for safety-related applications.

The load capacity and the suitability of the fastener depend on the size of the components and specific application on the product.

SNAP fasteners always require a combination of a SNAP male part and a female part of the SNAP, SNAP pull or SNAP push product families.

Sector – bags, children, outdoor, professionals, sports, transportation

Opening mechanisms - slide laterally

Weight - ca. 14 g

Dimensions (Ø; height) - 45,0 mm; 13,7 mm (retracted & incl. anchor)

Material - PA66GF15, stainless steel (magnetized)

Static breaking load N - 294 N

Static breaking load KG - 30 kg

Colour - black

Assembly - screw thread, threaded ring (included)

Tools for assembly - TOOL 31

Dimensions - 40,0 mm (bolt circle Ø)
