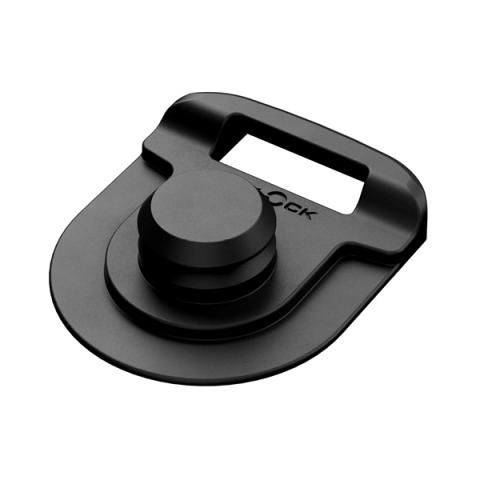

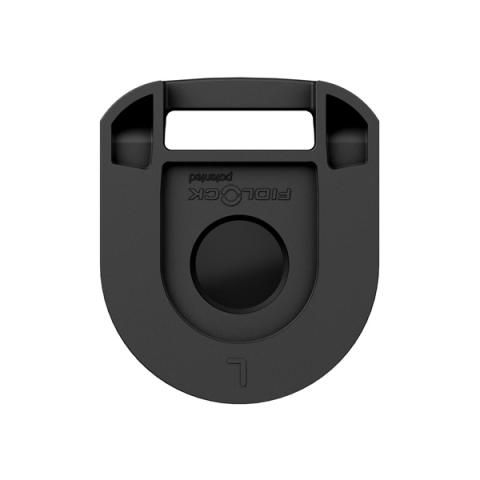

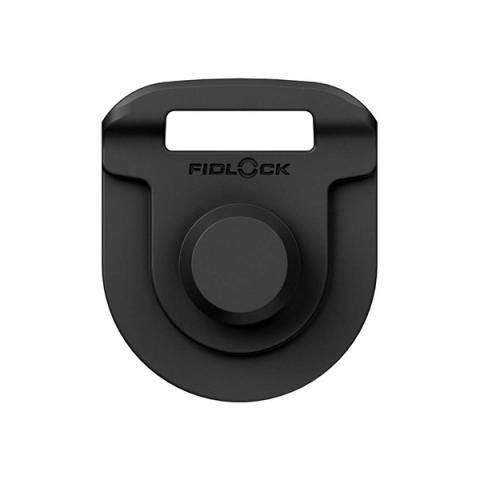

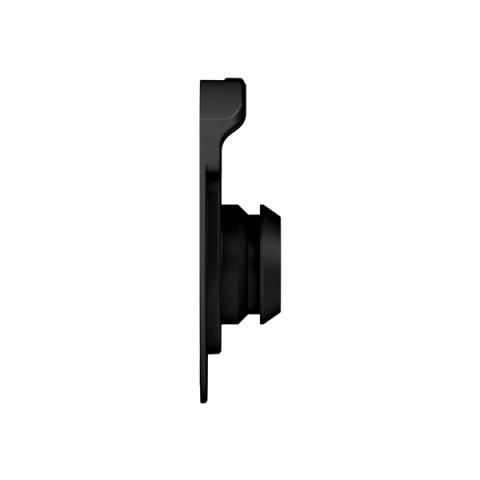

Fidlock Snap Buckle Male L Sewable SB 20 - F5421
The SNAP male L SB 20 is ideal for diverse textile applications, such as apparel and bags. Thanks to the additional possibility to attach a pull tab, it can be combined with different female parts and serve as a flat sewable alternative to our SNAP pull components, e.g. as a concealed fastener on a bag flap.
Article Description
The SNAP male L sewable SB 20 is a sewable fastening component. This fastener is a version of the SNAP male L sewable with an additional single bar for webbing. Thanks to the additional possibility to attach webbing, a pull tab can be applied for a pull opening mechanism and unique user-friendliness. This fastener requires an L-sized SNAP female, SNAP pull female or SNAP push female counterpart.
Safety Instructions & Further Information
Not suitable for safety-related applications.
The load capacity and the suitability of the fastener depend on the size of the components and specific application on the product.
SNAP fasteners always require a combination of a SNAP male part and a female part of the SNAP, SNAP pull or SNAP push product families.
Field of Application
The SNAP male L SB 20 is ideal for diverse textile applications, such as apparel and bags. Thanks to the additional possibility to attach a pull tab, it can be combined with different female parts and serve as a flat sewable alternative to our SNAP pull components, e.g. as a concealed fastener on a bag flap.
Installation
The SNAP male L SB 20 is sewn to materials and attached to 20 mm webbing or a pull tab.
Individualization
The SNAP fasteners are available in different colours and can feature an individual logo.
On top of that, the versions with high-end metal covers achieve an especially classy visual appearance.
Sku - F5421-000002(BLK)
Sector – bags, apparel, medical
Opening mechanisms - defined by female part
Webbing width - 20 mm
Weight - ca. 7 g
Dimensions (L x W x H) - 47,0 x 40,1 x 11,6 mm
Material - PA6
For material thickness - up to 2,5 mm
Static breaking load N - 294 N
Static breaking load KG - 30 kg
Colour - black
Assembly - sewing
