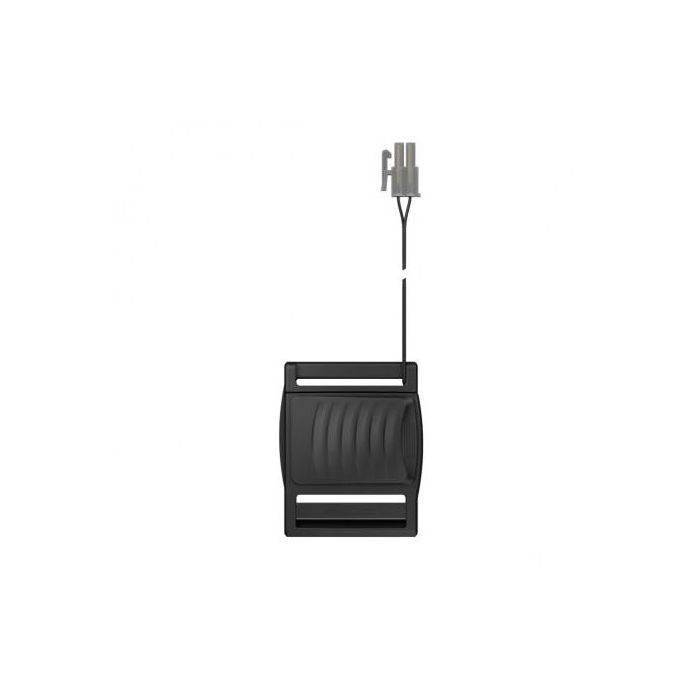

Fidlock SNAP Buckle - Flat 40 with Reed Switch - 08027

£16.85
In stock

The SNAP buckle flat 40 reed switch is ideally suited for applications which need the activation and deactivation of an electric circuit, e.g. anti-theft devices.

fidlock-snap-flat-40-with-reed-switch
fidlock-snap-flat-40-with-reed-switch fidlock-snap-flat-40-with-reed-switch fidlock-snap-flat-40-with-reed-switch fidlock-snap-flat-40-with-reed-switch fidlock-snap-flat-40-with-reed-switch fidlock-snap-flat-40-with-reed-switch fidlock-snap-flat-40-with-reed-switch fidlock-snap-flat-40-with-reed-switch

This buckle has an integrated reed switch which allows you to activate and deactivate the circuit within. Therefore, this fastener is ideally suited as a component for anti-theft devices or to activate and deactivate electronic components on the application, depending on the implementation of the fastener on the product.

The fastener itself is simply attached to the respective 40 mm straps. Additionally, it is connected via a Molex 39-01-2020 plug.

The plug is a Molex 39-01-2020. By opening the buckle you close the circuit, by closing it you deactivate the circuit. No logo print possible.

Not suitable for safety-related applications.

Sector – bags, professionals, Transportation, children

Opening mechanisms - slide laterally

Webbing width - 40 mm

Weight - ca. 25 g

Dimensions (L x W x H) - 74,0 x 48,4 x 14,0 mm

Material - PA66GF15

Static breaking load N - 392 N

Static breaking load KG - 40 kg

Colour - black

Assembly - strap
