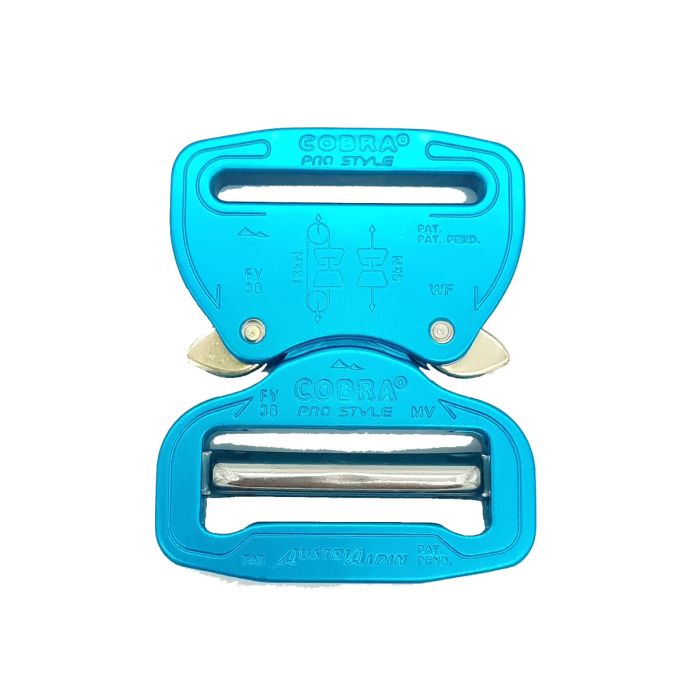

AustriAlpin Blue 38mm/1.5" Pro Style Cobra Buckle - Male Adjustable Female Fixed FY38BVF-ELOX
The COBRA® PRO STYLE is the strongest and world leading safety buckle made of aluminium.
Thanks to the patented locking mechanism and high breaking strength it meets the highest safety requirements. In combination with a fitting webbing, the minimum guaranteed load capacity is 9 kN tensile strength and 18 kN in loop configuration.
This version of the COBRA® PRO STYLE is intended for 38 mm webbing width. The ergonomically designed brass clips of standard size support an ideal opening of the buckle. Thanks to the adjuster bar on the male part of the buckle, the webbing length can be adjusted individually. On the non-adjustable female part the webbing needs to be sewn in.
Features:
- Both clips need to be pressed at the same time to open the COBRA®. One-sided release by pressing only one clip is nearly impossible.
- A release under tension is impossible.
- A one-sided locking is nearly impossible. Locking is confirmed by a distinct “clicking” sound.
- The cut-out on the backside of the COBRA® PRO STYLE prevents dirt, dust, ice or snow from getting caught in the buckle, which increases the extreme performance capabilities and lifetime even more.
- All sizes and variants of the COBRA® PRO STYLE are compatible.
use cases:
PPE, Fashion, air sports, tactical, equipment
Technical specifications
BODY
Material: aluminium
Color: Blue
Finish: ktl-coated
CLIPS
Material: brass
Color: colorless
Finish: polished
BAR
Material: stainless steel
Color: colorless
Finish: polished
BREAKING LOAD TENSILE STRENGTH 9 kN
BREAKING LOAD LOOP CONFIGURATION 18 kN
WEIGHT 67 g
RECOMM. WEBBING WIDTH MALE PART 38 mm
RECOMM. WEBBING WIDTH FEMALE PART 38 mm
SLOT WIDTH MALE PART 12 mm
SLOT WIDTH FEMALE PART 4 mm
OUTER DIMENSION LENGTH 63 mm
OUTER DIMENSION WIDTH 50 mm
OUTER DIMENSION DEPTH 10 mm
TECHNICAL DESIGN MALE PART adjustable
TECHNICAL DESIGN FEMALE PART non adjustable
SIZE OF CLIPS standard
COUNTRY OF ORIGIN Austria
