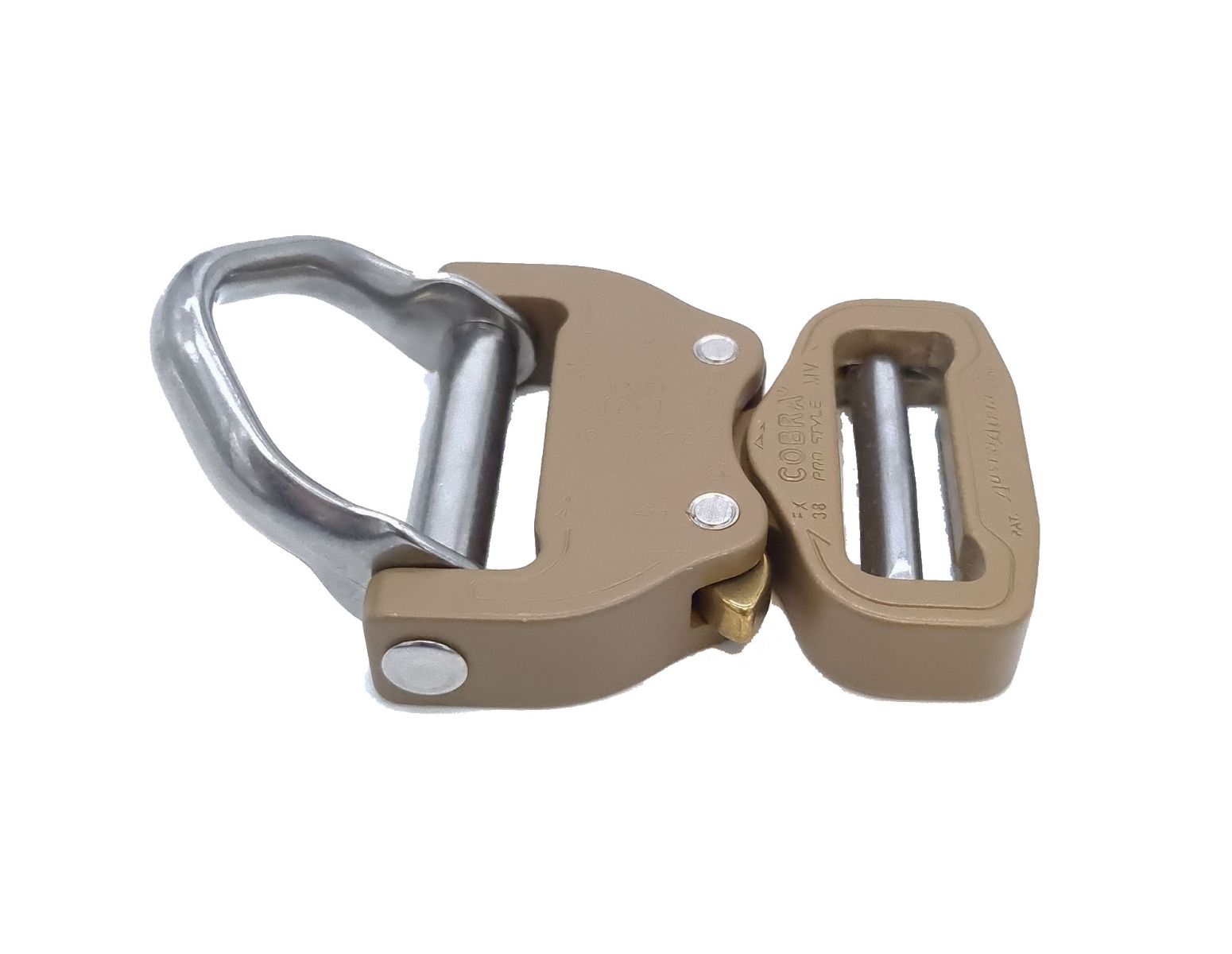

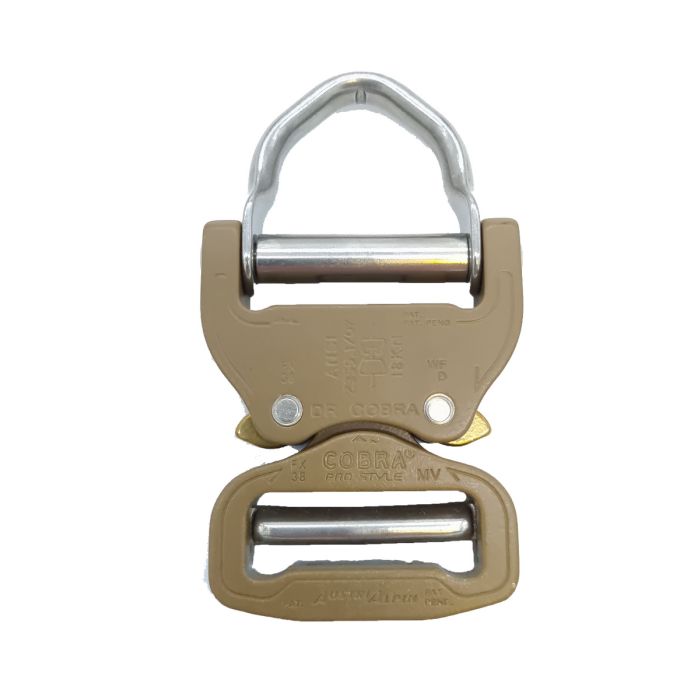

AustriAlpin 38mm / 1.5" Coyote Brown Cobra Buckle with D Ring - FX38CVD
AustriAlpin Cobra buckles (patented) are, without equal, the world's safest, most finely crafted, and strongest load bearing quick release fasteners available.
This innovative component is a synergistic hybrid of two standard components of safety industry hardware: the stainless-steel d-ring and the COBRA® PRO STYLE 18 kN – a buckle which meets the highest safety requirements for its users. Its unique construction prevents the D-ring from getting squeezed against the webbing and therefore guarantees easy handling.
The COBRA® PRO STYLE 18 kN is thicker and even stronger than the COBRA® PRO STYLE and complies with the ANSI Z359.12-2019 standard with a minimum tensile strength of 15 kN for the buckle and 22 kN for the d-ring. However, we guarantee 18 kN for the buckle (straight pull) and point this out in the technical specifications accordingly.
Features:
Both clips need to be pressed at the same time to open the COBRA®. One-sided release by pressing only one clip is nearly impossible. A release under tension is impossible. A one-sided locking is nearly impossible. Locking is confirmed by a distinct “clicking” sound. The cut-out on the backside of the COBRA® PRO STYLE prevents dirt, dust, ice or snow from getting caught in the buckle, which increases the extreme performance capabilities and lifetime even more.
All sizes and variants of the D-RING COBRA® PRO STYLE 18 kN are compatible.
use cases:
PPE, Fashion, air sports, tactical, equipment
Technical specifications
BODY
Material: aluminium
Color: coyote brown
Finish: ktl-coated
CLIPS
Material: brass
Color: colorless
Finish: polished
BAR
Material: stainless steel
Color: colorless
Finish: polished
D-RING Material: stainless steel
Color: colorless
Finish: polished
BREAKING LOAD TENSILE STRENGTH 18 kN
BREAKING LOAD D-RING 22 kN
WEIGHT 139 g
RECOMM. WEBBING WIDTH MALE PART 38 mm
RECOMM. WEBBING WIDTH FEMALE PART 38 mm
OUTER DIMENSION LENGTH 69 mm
OUTER DIMENSION WIDTH 58 mm
OUTER DIMENSION DEPTH 14 mm
WEBBING SLOT MALE PART adjustable
WEBBING SLOT FEMALE PART with integrated D-ring, non-adjustable
COUNTRY OF ORIGIN Austria
